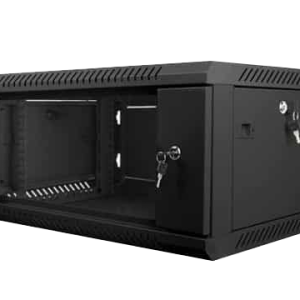

APKR 12U 600*450 NETWORK CABINET – 12U

Ll-Rack Wall Mount Data Racks And Network Cabinets Are Designed To Be Your Perfect Solution For All Your Rack-Mountable Equipment.

Available In The Following Depths: 300mm (Only Available In 4u & 6u), 450mm, 550mm & 600mm Ideal For Small Network Installations Where Floor Space Doesn’t Allow For A Floor Standing Server Cabinet.

The Product Is Perfect For Single-Person Installation With Easy Mounting Brackets.

Available As Pre-Built Only.

Technical Specification

• Loading Capacity: 40KG
• Doors: 180-Degree Opening Angle And Can Be Mounted On The Left & Right-Hand Side With A Simple Spring Latch
• Security: Lockable Doors And Side Panels
• Ventilation: Optional Fan Can Be Fitted If Required

Material:

• 1.2mm Mild Steel Construction
• The Toughened Glass Panel In The Steel Framework Door
• Racks: Supplied With Depth-Adjustable Heavy-Duty Steel Mounting Profiles To Take Industry Standard 19’’ Patch Panels, Switches, And Other Equipment.
• Doors: Lockable, Removable Glazed Front Door. Lockable And Removable Steel Side Panels
• Ventilation: Side Panels Vented. The Roof Has A Cutout For 2 Fan Units Top Be Mounted Directly
• Cable Entry: Cable Access Points On The Lid And Base Of The Cabinet.
