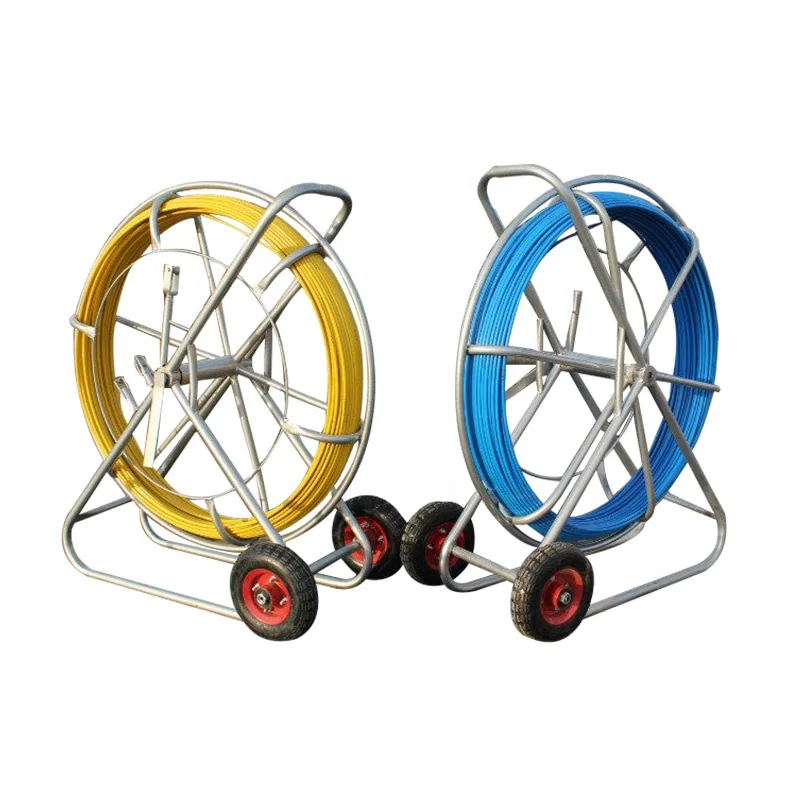

12mm Cable Duct Rodder with wheel (200M)
Buy 12mm Cable Duct Rodder with wheel (200M) from A2Z Africa Kenya
12mm 200m snake duct rodders fiberglass duct rodder for rental fiber optic cable puller

Products Show

Specifacation | Rod diameter(mm) | 4mm-18mm |
Rod length(mm) | 10m-500m | |
Frame Spec.(mm) | 1300*450*1330,1200*420*1220,980*350*1000mm, 680*240*700mm, etc | |
wheel diameter(mm) | 300mm | |
wall thickness of matel frame | 2.2mm | |
Color | blue, yellow, red, white, orange. and so on | |
Material | Rod inner | Extruded by fiber glass and high strength resin at high temperature |
Rod outer | High density polyethylene coating | |
Iron Frame | Steel with high temperature sprayed plastic or spray coating | |
wheel | rubber | |
Brake | yes | |
Drawing head | copper | |
Physical Characters | Density | 55g/m |
Working temperature | -40°C to +80°C | |
Breaking tension | 100kg | |
Bending radius | 295mm | |
Technology | Pultrusion | |
Packing | inside | Plastic woven strip wind around the frame |
Outside | carton |




Details Images

Assembly & Function





Application

Packing & Delivery
The inner packing: Plastic woven strip wind around the cable duct rodder frame
The outer packing: Put into a carton
If the quntity of the cable duct rodder is LCL,we will use the wodden pallet


Our Certifications
